Solvent-less - Standard S

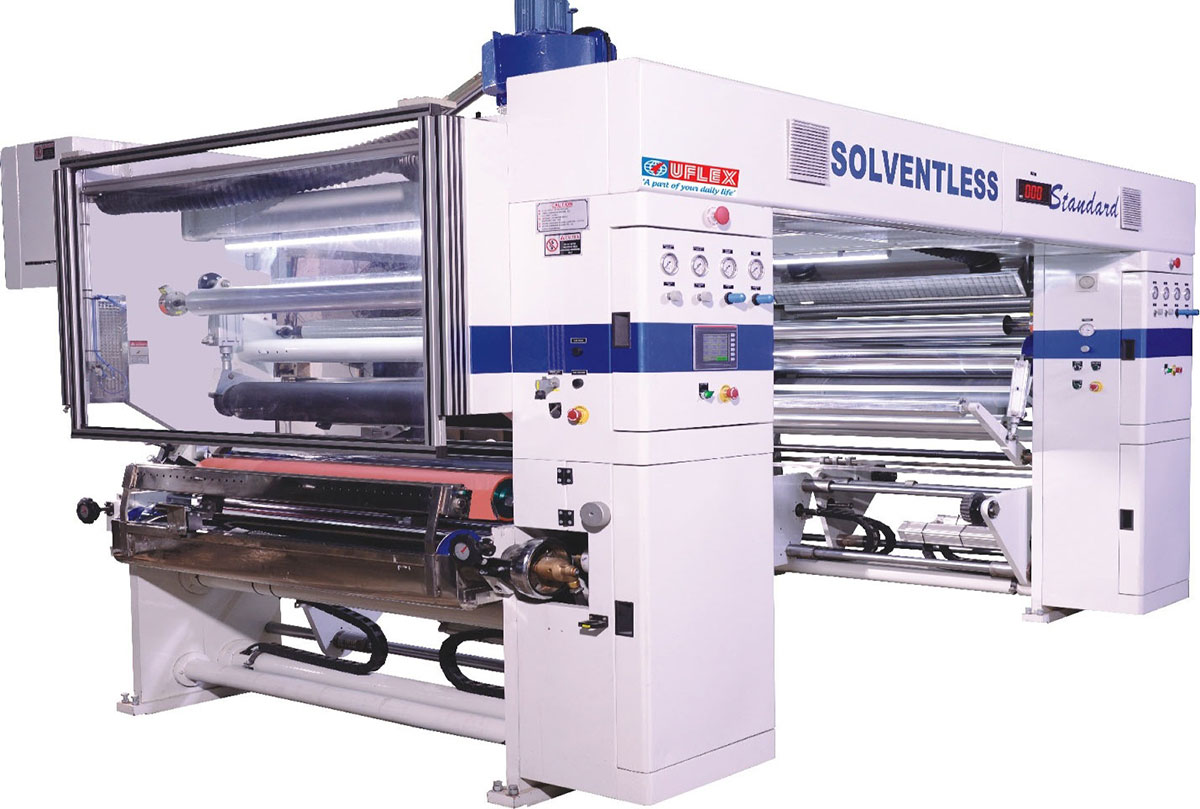

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Name: Uflex Solventless Laminator Machine
  • Model: Standard S - 1000
  • Maximum Web Width: 1000mm
  • Minimum Web Width: 600 mm
  • Mechanical Speed: 350 Mtr./min (Depends upon type, thickness, adhesive, operator skill, coating thickness, temperature etc.)
Unwinder A
  • Maximum Roll Diameter : 800 mm
  • Inside Core Diameter : 76 mm/152 mm
  • Direction Unwinding: Two (2) Direction Unwinding
Unwinder B
  • Maximum Roll Diameter: 800 mm
  • Inside Core Diameter: 76 mm/152 mm
  • Direction Unwinding: Two (2) Direction Unwinding
Rewinder
  • Maximum Roll Diameter: 800 mm
  • Inside Core Diameter: 152 mm
  • Direction Rewinding: Two (2) Direction Rewinding
Tension Range
  • Unwinder A: 4 – 30 kg
  • Unwinder B: 4 – 30 kg
  • Rewinder: 4 – 35 kg
  • Coater: 4 – 30 kg

(Adjustable Taper Tension 0% to 30% of set value for rewinding)

Click Here to Download Converting Rotogravure Printing Machines (Solvent-less Lamination Machines - Standard S) Product Catalogue.
