TORO SLIT

Home Our Businesses Engineering Products Converting Machines Slitting / Rewinding Machines TORO SLIT

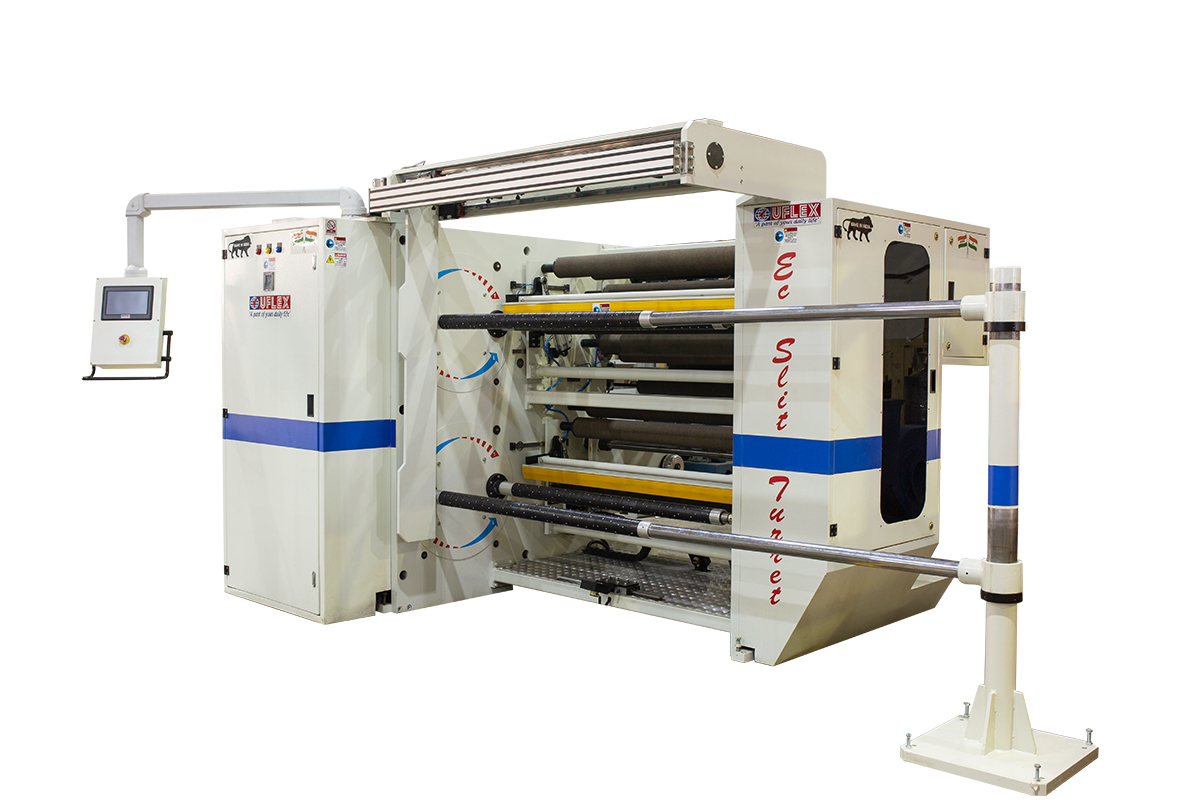

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Name: UFlex Slitting / Rewinding Machines TORO SLIT
  • Model Name: TORO SLIT-1300 (TURRET TYPE)
  • Maximum Web width: 1300 mm
  • Minimum Web width: 500 mm
Unwinder
  • Maximum Roll Diameter: 800 mm / 1000 mm (optional)
  • Inside Core Diameter: 76/152 mm
  • Chucking: Through pneumatic cylinder & self shafted chucking
    • Rewinder Turret Type
  • Maximum Roll Diameter: 600 mm
  • Inside Core Diameter: 76 mm
  • Minimum Width: 50 mm
  • Mechanical speed: 700 mpm*
  • Rider Roller Assy Slider Type: Operated through slide and rail with the help of pneumatic cylinder
  • Cutter Assy: Yes (Top/Bottom)
  • Roll Unloader: Automatic type
  • Typical Material Range: Hard and soft film, papers and Laminates (10-150 m)
  • Laser Light: For core position

    • Click Here to Download Converting Slitting / Rewinding Machines (TORO SLIT) Product Catalogue.
