Electronic Line Shaft - Standard

Home Our Businesses Engineering Products Converting Machines Rotogravure Printing Machines Electronic Line Shaft - Standard

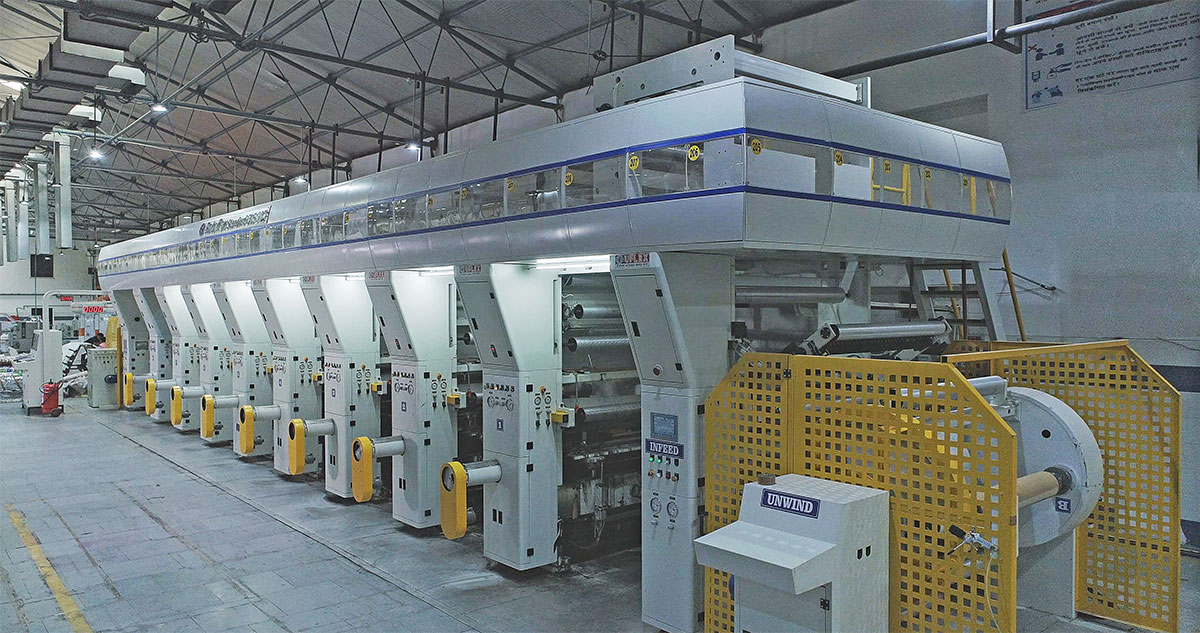

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Type: Electronic Line Shaft - Standard
  • Model: Rotoflex – ELS STANDARD With Self Shaft Chucking (Shaftless)
  • Max Web / Printing Width: Maximum – 1320 & Minimum - 1050 mm
  • Print Repeat Range : Maximum - 800 mm & Minimum - 400 mm
  • Printing Cylinder width: Maximum - 1370 mm & Minimum - 1050 mm
Unwinder
  • Maximum Roll diameter: 800 mm / 1000 mm (Optional)
  • Inside Core Diameter: 76/152 mm
  • Direction of Unwinding: Two (2) Direction unwinding
  • Splicing: Both Side Splicing
  • Tension range: 4 - 40 kgs
Rewinder
  • Maximum Roll Diameter: 800 mm / 1000 mm (Optional)
  • Inside Core Diameter: 76/152 mm
  • Direction of Rewinding: One (1) Direction
  • Tension range: 4-40 kgs
  • Splicing: Bottom side
  • Rider Roller: Common rider for both shaft pneumatically
