Extrusion Lamination Machines

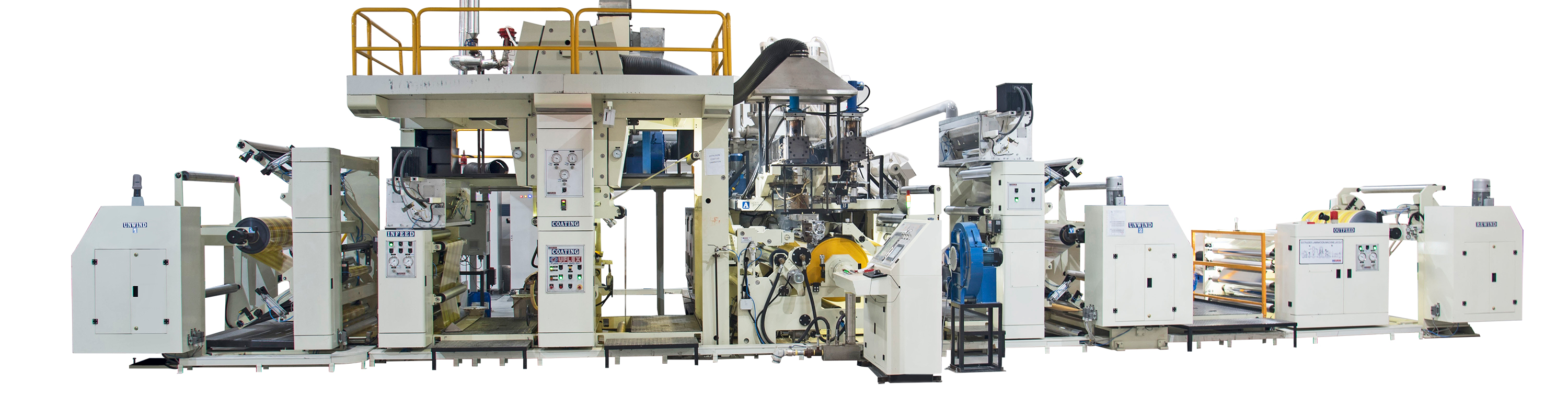

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Name: UFlex Extrusion Lamination
  • Model: EL-1300-250
  • Maximum Web Width: 1300mm
  • Minimum Web Width: 700mm
  • Mechanical Speed: 250 Mtr / min
  • Guide Rolls Width: 1400mm
  • Coating Nip: Shafted type
  • Pneumatic Used: Festo/Smc/Pneumax/Uflex Std
Turret type Primary Unwinder
  • Maximum Roll Diameter: 1000 mm
  • Inside Core Diameter: 76 /152 mm
  • Direction Unwinding: Two (2) Direction Unwinding & Both Side Splicing
  • Infeed unit-1: Two Roller Press Type
Turret type Secondary Unwinder
  • Maximum Roll Diameter: 800 mm
  • Inside Core Diameter: 76 /152 mm
  • Tension Control: Through Dancer
  • Direction Unwinding: Two (2) Direction Unwinding & Both Side Splicing
Turret type Rewinder
  • Maximum Roll Diameter: 1000 mm
  • Tension Control: Through Dancer
  • Inside Core Diameter: 152 mm
  • Direction Rewinding: Two (2) Direction Rewinding, One Direction Splicing
Extruder
Extruder A
  • Extruder Dia : 75mm (Master)
  • Through Put: 150Kg/per hr maximum
  • Extruder Dia: 75mm (satellite)
  • Extrusion Capacity: LDPE : 150 kg/hr (MI: 7)
T-Die
  • Die Type: Manual, Auto (Optional)
  • Deckling: Internal
  • EBR: Yes
  • Minimum Width: 700 mm
  • Maximum Width: 1300 mm
  • Extrude Thickness: 8-40 GSM
  • Gauge Variation: -/+ 7 %
  • Lip Heater Provision: Yes
