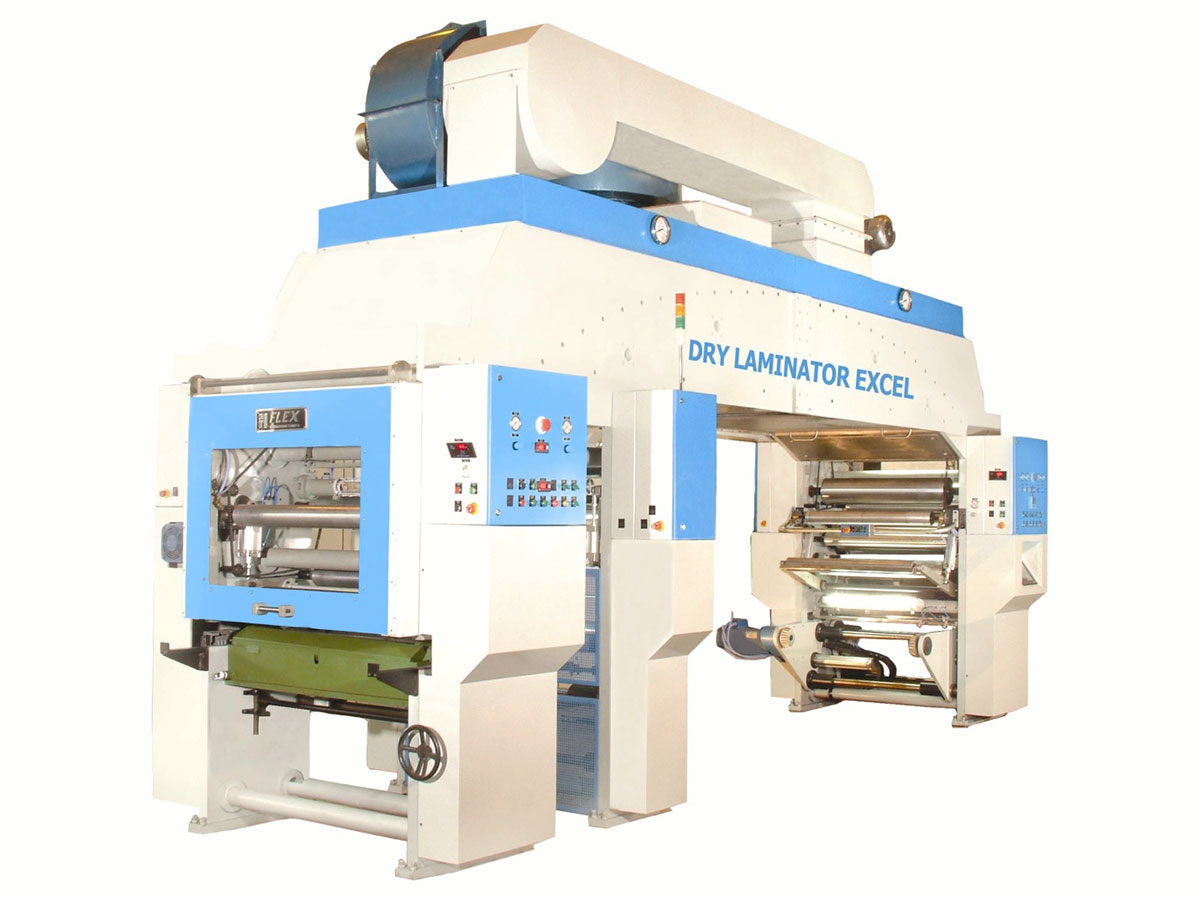

Machine Picture
Technical Data
GENERAL SPECIFICATION
- Machine Name: UFlex Dry Lamination
- Model: Solvent-base - Excel
- Maximum Web width: 1320 mm
- Minimum Web width: 600 mm
- Mechanical speed: 300 mpm
Unwinder A
- Maximum Roll Diameter: 1000 mm
- Inside Core Diameter: 76/152 mm
- Direction Unwinding: Two (2) Direction Unwinding
Unwinder B
- Maximum roll diameter: 1000 mm
- Inside core diameter: 76/152 mm
- Direction Unwinding: Two (2) Direction Unwinding
Rewinder
- Maximum roll diameter: 1000 mm
- Inside core diameter: 76/152 mm
- Direction Rewinding: Two (2) Direction Rewinding
Tension range
- Unwinder A: 4 - 30 kg
- Unwinder B: 4 - 30 kg
- Rewinder : 4 - 35 kg
- Coater: 4 - 30 kg
- Infeed: 4 - 30 kg (with cold seal application only)
