ECO HSR 1300

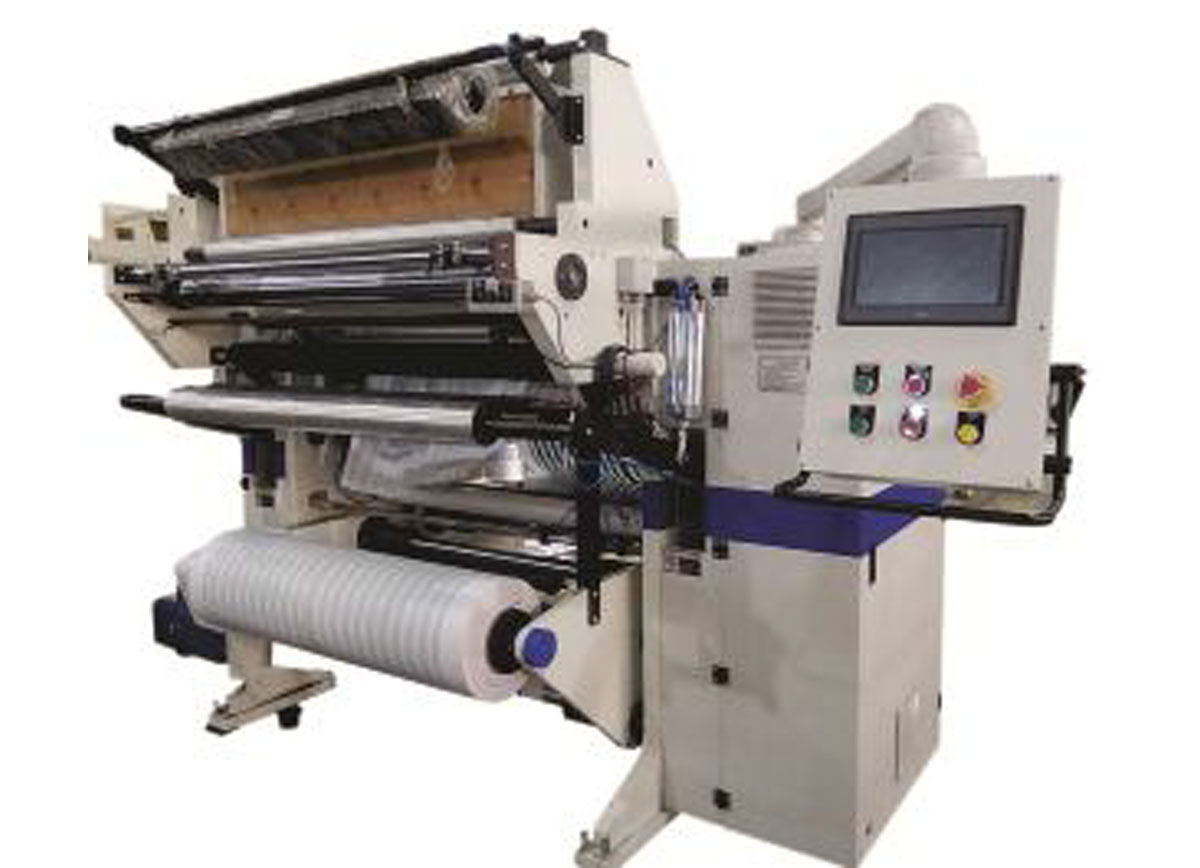

Machine Picture

UFlex Engg Business

Technical Data

GENERAL SPECIFICATION
  • Machine Name: UFlex High Speed Inspection Machine
  • Model Name: ECO HSR 1300
  • Maximum Web width: 1300 mm
  • Minimum Web width: 550 mm
  • Mechanical speed: 450 Mtr. / min.(Depends upon: Type, Roll condition, Tension range, operator skill etc.)
Unwinder
  • Maximum Roll Diameter: 1000 mm
  • Inside Core Diameter: 76 /152 mm
  • Direction Unwinding: Two (2) Direction Unwinding
Rewinder - 1
  • Maximum Roll Diameter: 1000 mm
  • Inside Core Diameter: 152 mm
  • Direction Rewinding: Two (2) Direction Rewinding
Rewinder - 2
  • Maximum Roll Diameter: 1000 mm
  • Inside Core Diameter: 152 mm

Machine Video

Click Here to Download Converting Inspection and Rewinding Machines (ECO HSR 1300) Product Catalogue.
